熱板焊(han)(han)接機(ji)主要(yao)通過(guo)一個(ge)由溫度控(kong)制的(de)加熱板來焊(han)(han)接塑料件。

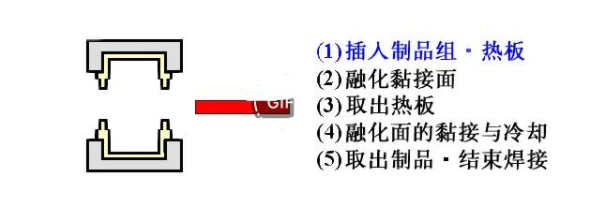

焊接時，加熱板置于兩個塑料件之間，當工件緊貼住加熱板時，塑料開始熔化。在一段預先設置好的加熱時間過去之后，工件表面的塑料將達到一定的熔化程度，此時工件向兩邊分開，加熱板移開，隨后兩片工件并合在一起，當達到一定的焊接時間和焊接深度之后，整個焊接過程完成。
1、熱(re)板(ban)焊接機根據熱(re)板(ban)裝置可分(fen)為垂直式或平行式。
2、熱(re)板焊接根據模具可分為橫向和臥(wo)向。即橫向式(shi)熱(re)板焊接機和臥(wo)式(shi)熱(re)板焊接機。
3、熱板焊(han)(han)接機(ji)體積(ji)因焊(han)(han)接件的大小(xiao)而定，根據設備的大小(xiao)驅(qu)動(dong)(dong)方式(shi)可選擇(ze)氣(qi)動(dong)(dong)、液壓驅(qu)動(dong)(dong)或伺(si)服馬達驅(qu)動(dong)(dong)。即氣(qi)壓式(shi)熱板焊(han)(han)接機(ji)和油壓式(shi)熱板焊(han)(han)接機(ji)。
4、根(gen)據焊(han)接程序(xu)要求，可選擇半(ban)自動或全自動模式(shi)。設(she)備保(bao)持良好穩定性(xing)(xing)，能保(bao)證(zheng)一致的(de)(de)焊(han)接效果及工件加工后高度(du)的(de)(de)準(zhun)確性(xing)(xing)，焊(han)接溫度(du)，加熱(re)時間，冷卻時間，加熱(re)深(shen)度(du)，熔接深(shen)度(du)壓力，轉(zhuan)接時間等(deng)參數均(jun)可調。其(qi)它選擇性(xing)(xing)的(de)(de)焊(han)接參數也可調，水(shui)平熱(re)板設(she)計的(de)(de)設(she)備，熱(re)板可作(zuo)90°旋轉(zhuan)以便清(qing)潔
熱板焊接機的組成及其作用：
熱(re)板焊接機(ji)由(you)氣壓傳(chuan)動部(bu)分(fen)、控制部(bu)分(fen)、電氣部(bu)分(fen)、機(ji)臺及熱(re)板模具和機(ji)械裝置等(deng)組成。
1、氣動傳動部分
此部(bu)分包(bao)括有：過滹(hu)器、減(jian)壓閥(fa)、油霧(wu)器、換向器、節流閥(fa)、氣缸等。
熱板(ban)焊接(jie)機工作時首先由空氣(qi)(qi)壓縮機驅動(dong)沖程(cheng)氣(qi)(qi)缸，以(yi)帶動(dong)熱板(ban)模(mo)具系統上下移動(dong)，氣(qi)(qi)壓傳動(dong)在熱板(ban)焊接(jie)機的(de)焊接(jie)過程(cheng)中(zhong)氣(qi)(qi)壓根據焊接(jie)的(de)塑料件需要調定。
2、控制部分
控(kong)(kong)(kong)(kong)制(zhi)部分由PLC和(he)溫度控(kong)(kong)(kong)(kong)制(zhi)器組成。主要(yao)功能是(shi)：一(yi)是(shi)控(kong)(kong)(kong)(kong)制(zhi)氣壓(ya)傳(chuan)動(dong)系(xi)統工作(zuo)，使其焊(han)(han)(han)接(jie)(jie)(jie)(jie)時(shi)(shi)(shi)在(zai)定(ding)(ding)時(shi)(shi)(shi)控(kong)(kong)(kong)(kong)制(zhi)下(xia)打(da)開(kai)氣路閥門，氣缸(gang)加(jia)(jia)壓(ya)使焊(han)(han)(han)頭(tou)下(xia)降，以(yi)一(yi)定(ding)(ding)壓(ya)力(li)(li)壓(ya)住被焊(han)(han)(han)物件，當焊(han)(han)(han)接(jie)(jie)(jie)(jie)完后保壓(ya)一(yi)段時(shi)(shi)(shi)間，然(ran)后控(kong)(kong)(kong)(kong)制(zhi)系(xi)統將(jiang)氣路閥門換(huan)向，使焊(han)(han)(han)頭(tou)回升(sheng)復(fu)位；二是(shi)控(kong)(kong)(kong)(kong)制(zhi)塑(su)料(liao)件在(zai)熱板(ban)(ban)上(shang)加(jia)(jia)熱的工作(zuo)時(shi)(shi)(shi)間，本系(xi)統使整(zheng)(zheng)個焊(han)(han)(han)接(jie)(jie)(jie)(jie)過(guo)程實現(xian)自動(dong)化，操(cao)作(zuo)時(shi)(shi)(shi)只啟(qi)動(dong)按鈕產生(sheng)一(yi)個觸發脈沖，便能自動(dong)地完在(zai)本次(ci)焊(han)(han)(han)接(jie)(jie)(jie)(jie)全過(guo)程。整(zheng)(zheng)個控(kong)(kong)(kong)(kong)制(zhi)系(xi)統的順序是(shi)：電源啟(qi)動(dong)一(yi)觸發控(kong)(kong)(kong)(kong)制(zhi)信號氣壓(ya)傳(chuan)動(dong)系(xi)統，氣缸(gang)加(jia)(jia)壓(ya)上(shang)下(xia)加(jia)(jia)緊(jin)模(mo)具(ju)下(xia)降并壓(ya)住在(zai)上(shang)下(xia)熱板(ban)(ban)模(mo)具(ju)發生(sheng)工作(zuo)，并保持一(yi)定(ding)(ding)熔接(jie)(jie)(jie)(jie)時(shi)(shi)(shi)間繼續保持一(yi)定(ding)(ding)壓(ya)力(li)(li)時(shi)(shi)(shi)間退(tui)壓(ya)，上(shang)下(xia)加(jia)(jia)緊(jin)模(mo)具(ju)回升(sheng)焊(han)(han)(han)接(jie)(jie)(jie)(jie)結束。
3、電器部分
觸摸屏及（可編程）控(kong)(kong)(kong)制(zhi)器(qi)(qi)、磁性開關(guan)，及電(dian)加(jia)(jia)熱(re)(re)(re)管(guan)(guan)，電(dian)器(qi)(qi)部分(fen)主要分(fen)為熱(re)(re)(re)板(ban)(ban)機的熱(re)(re)(re)板(ban)(ban)溫(wen)(wen)度(du)控(kong)(kong)(kong)制(zhi)系(xi)(xi)統(tong)(tong)和上、下模板(ban)(ban)及熱(re)(re)(re)板(ban)(ban)運動機構(gou)動作的程控(kong)(kong)(kong)系(xi)(xi)統(tong)(tong)兩(liang)部分(fen)：加(jia)(jia)熱(re)(re)(re)板(ban)(ban)溫(wen)(wen)控(kong)(kong)(kong)系(xi)(xi)統(tong)(tong)是(shi)三(san)相(xiang)(xiang)(xiang)380伏電(dian)源經空氣開關(guan)引入(ru)，并由溫(wen)(wen)度(du)控(kong)(kong)(kong)制(zhi)器(qi)(qi)來控(kong)(kong)(kong)制(zhi)三(san)相(xiang)(xiang)(xiang)固態(tai)繼(ji)電(dian)器(qi)(qi)SSR的通(tong)斷供給熱(re)(re)(re)板(ban)(ban)中的電(dian)熱(re)(re)(re)管(guan)(guan)的加(jia)(jia)熱(re)(re)(re)電(dian)流(liu)(liu)，在(zai)電(dian)熱(re)(re)(re)板(ban)(ban)上埋裝入(ru)熱(re)(re)(re)電(dian)偶，以它為溫(wen)(wen)度(du)信號反(fan)饋于溫(wen)(wen)度(du)控(kong)(kong)(kong)制(zhi)器(qi)(qi)，來實(shi)現對電(dian)熱(re)(re)(re)板(ban)(ban)的溫(wen)(wen)度(du)控(kong)(kong)(kong)制(zhi)；溫(wen)(wen)控(kong)(kong)(kong)器(qi)(qi)采用智能方(fang)式控(kong)(kong)(kong)制(zhi)固態(tai)繼(ji)電(dian)器(qi)(qi)SSR的輸出電(dian)流(liu)(liu)。本系(xi)(xi)統(tong)(tong)電(dian)路還設(she)置兩(liang)只交(jiao)流(liu)(liu)電(dian)流(liu)(liu)表來監(jian)視(shi)三(san)相(xiang)(xiang)(xiang)電(dian)流(liu)(liu)通(tong)斷及大小狀況。加(jia)(jia)熱(re)(re)(re)溫(wen)(wen)度(du)可以按照加(jia)(jia)熱(re)(re)(re)板(ban)(ban)加(jia)(jia)工溫(wen)(wen)度(du)要求，在(zai)溫(wen)(wen)控(kong)(kong)(kong)器(qi)(qi)面板(ban)(ban)上預先(xian)設(she)定和調節(jie)。
4、模具和機(ji)械(xie)裝置(zhi)部分
此(ci)部分采用(yong)滑板(ban)(ban)式(shi)(shi)結構，由電加(jia)熱(re)方法將加(jia)熱(re)板(ban)(ban)熱(re)量傳遞給上(shang)、下塑料件加(jia)熱(re)件的熔(rong)接(jie)面(mian)。使(shi)其表面(mian)熔(rong)化(hua)，然后(hou)(hou)(hou)將加(jia)熱(re)板(ban)(ban)迅速退出，塑料件上(shang)下兩片膠件在2只氣缸(gang)的作用(yong)下，迅速壓接(jie)在一起，使(shi)加(jia)熱(re)后(hou)(hou)(hou)熔(rong)接(jie)面(mian)迅速融合、固(gu)(gu)化(hua)而成(cheng)為一體。整機(ji)為框架形式(shi)(shi)，有上(shang)模固(gu)(gu)定(ding)定(ding)位結構、下模固(gu)(gu)定(ding)定(ding)位結構、熱(re)模板(ban)(ban)集成(cheng)三大(da)模塊組成(cheng)，本機(ji)配(pei)有銅質(zhi)電熱(re)板(ban)(ban)兩塊，由氣缸(gang)前后(hou)(hou)(hou)推進移(yi)動(dong)，使(shi)用(yong)方便(bian)。
